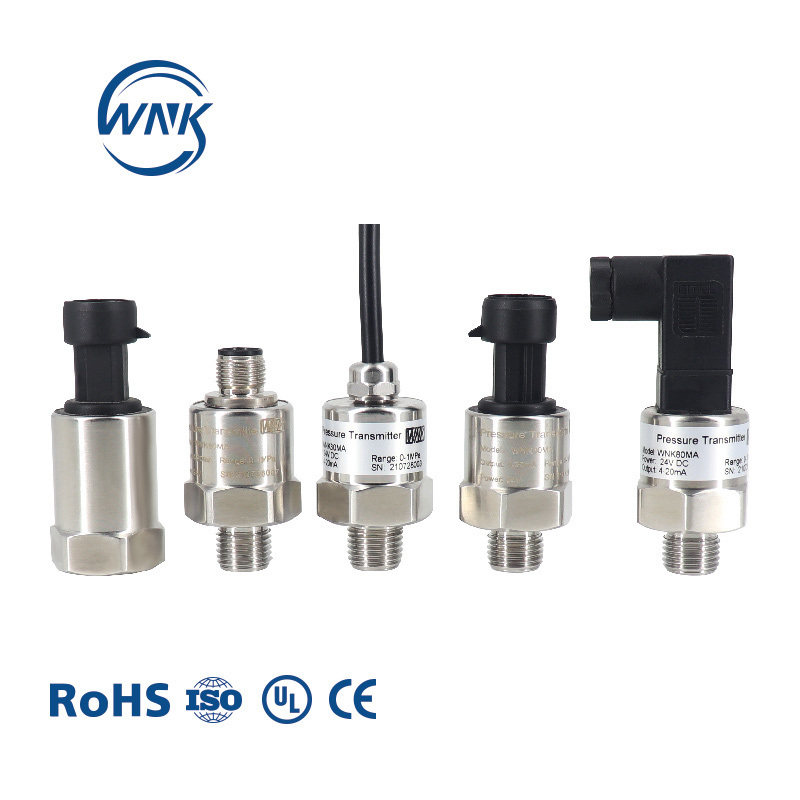

Name: WNK 0-10bar 150Psi Npt 1/8 0.5-4.5V Water Pressure Sensor Transducer for Air Gas
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK80MA
Availability: InStock

Домой > продукты > датчик давления iot >

WNK 0-10bar 150Psi Npt 1/8 0.5-4.5V Water Pressure Sensor Transducer for Air Gas

1/8 NPT water pressure sensor

0-10bar gas pressure transducer

0.5-4.5V IoT pressure sensor

Место происхождения:

Чиан

Фирменное наименование:

WNK

Сертификация:

CE/ROHS

Номер модели:

WNK80MA

Свяжитесь с нами

Запросите цитату

Подробная информация о продукции

Измеренные носители:

Вода, воздух, газ, пара

Жилищный материал:

304SS, 316SS

Точность:

0,5%фс

Диапазон давления:

10 кпа, -100 кпа ... 70 МПа

Приложения:

HVAC с хладагентом с водой, автомобиль

Выходной сигнал:

4-20MA, 0,5-4,5 В, 0--10 В, 3,3 В, I2C, RS485

Тип давления:

Давление датчика, абсолютное давление, герметичное давление

IP-рейтинг:

IP65

Выделить:

1/8 NPT water pressure sensor

0-10bar gas pressure transducer

0.5-4.5V IoT pressure sensor

Условия оплаты и доставки

Сопутствующие продукты

Видео

WNK 0-10bar 150Psi Npt 1/8 0.5-4.5V Water Pressure Sensor Transducer for Air Gas

Лучшая цена

Видео

WNK Water Treatment Gas Pressure Sensors 4-20mA Pressure Transducer

Лучшая цена

Видео

4-20ma 1/4 1/8 NPT Вакуумное масло Гидравлический датчик давления Преобразователь 100 Psi 150 Psi

Лучшая цена

Видео

Датчик давления WNK 50 Psi 100 Psi 150 Psi 4-20 мА для воды/воздуха/масла/топлива

Лучшая цена

Свяжитесь с нами

86-551-65369655

Свяжитесь сейчас

Описание продукта

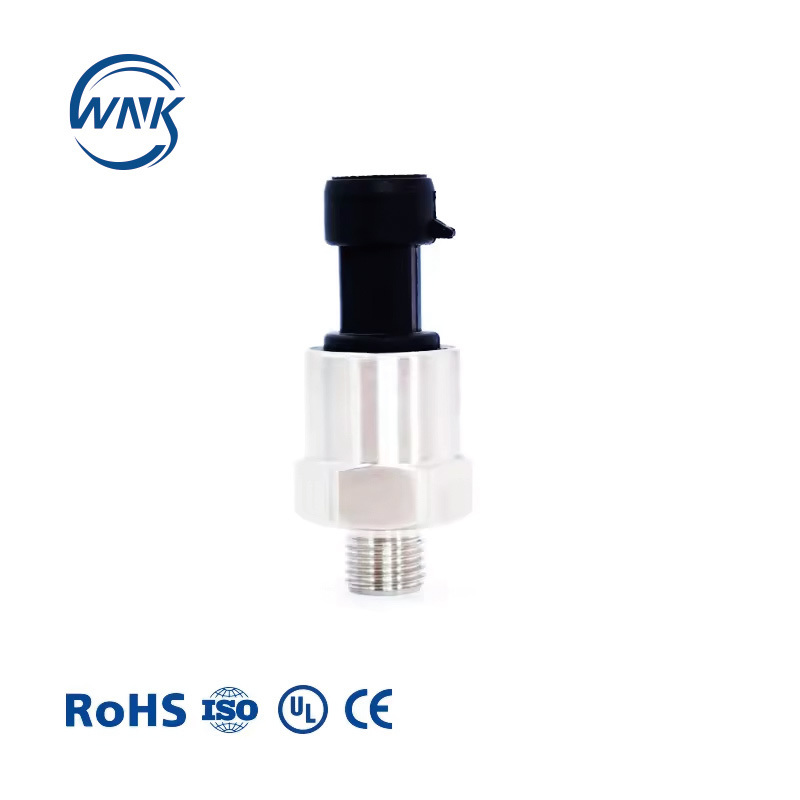

WNK 150Psi Npt 1/8 0.5-4.5V Water Pressure Sensor

Product Description

WNK80MA is a series of high performance compact pressure Transmitter, by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance.

Applicable media	Liquid, gas and steam
Pressure range	0-60Bar/ -1-700Bar
Cell	Ceramic capacitive pressure sensor
Pressure measurment	Gauge Pressure, absolute pressure and sealing pressure
Output	4-20mA/0.5-4.5V/1 -5V/0-5V/0-10V/I2C
Power supply	24VDC/12VDC/5VDC/3.3V
Accuracy(linearity,Hysteresis and Repeatability)	0.5%FS 1%F.S.
Compensation temperature	-20~85ºC
Ambient temperature	-40~125ºC
Working temperature	-40~125ºC
Temperature drift(zero)	±0.15% F.S. (-20~85ºC)
Temperature drift(full range)	±0.15% F.S. (-20~85ºC)

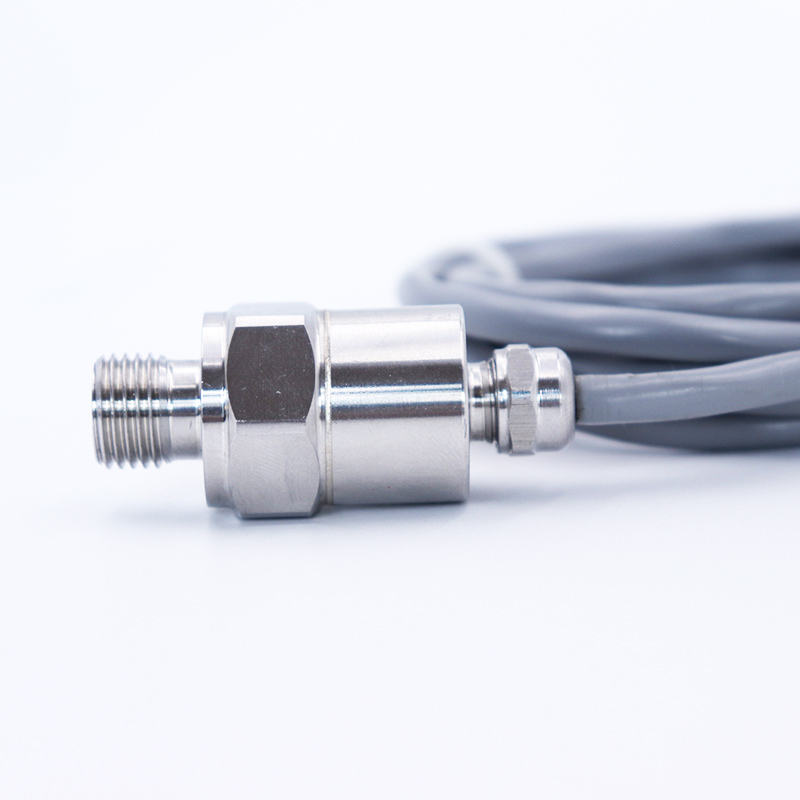

Electrical connection	Parkard, Cable outlet, M12, mini DIN43650
Mechanical connection	G1/4, 1/4NPT,1/8NPT, M12*1.5, 7/16-20UNF (female), customazation
Housing material	304 stainless steel(316SS for inner core)
Protection	IP65

Product Application

What role does the sensor play in the air compressor?

The compressor (compressor), as the heart of the refrigeration system, is a driven fluid machine that lifts low-pressure gas into high-pressure gas. The low-temperature and low-pressure refrigerant gas sucked from the suction pipe is compressed by the rotation of the motor to discharge the high-temperature and high-pressure refrigerant gas to the exhaust pipe to provide power for the refrigeration cycle. Thus, a refrigeration cycle of compression → condensation (exotherm) → expansion → evaporation (heat absorption) is realized. The compressor is divided into piston compressor, screw compressor, centrifugal compressor, linear compressor and so on.

During the work, the actual responsibility of the compressor is to increase the pressure and increase the state of the suction pressure to the state of the exhaust pressure. Compression ratio is a technical expression of pressure difference, which means the absolute pressure on the high pressure side divided by the absolute pressure on the low pressure side. The compression ratio must be calculated using an absolute pressure value. In order to avoid making the calculated value of the compression ratio negative, the absolute pressure must be used instead of the gauge pressure when calculating the pressure ratio. It makes sense to use an absolute pressure value to make the compression ratio calculation a positive value.

Large central air conditioning, refrigeration equipment, in order to achieve automatic control of the machine, the lowest energy consumption ratio, the operation of the equipment needs to be fully monitored, such as temperature, refrigeration medium pressure.
The pressure sensor mainly measures the pressure of the refrigerating medium online on the refrigerating equipment, and transmits the pressure to the control system of the main machine in the form of electrical signals, so as to reflect the compression operation state of the equipment, to realize the automatic control of the product, and to reflect the consumption of the equipment as soon as possible.
